Electric Engine Room Gantry Crane Ship Deck Equipment

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : Zhongyuan Marine Equipmen

Certification : CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Model Number : Standard or Customized

MOQ : 1 Unit

Price : Based on quotation

Packaging Details : Export standard pallet or customized packing

Delivery Time : Based on project requirements

Payment Terms : T/T, L/C

Supply Ability : Customized production based on project requirements

Working Temperature : -40 to 50℃ Etc.

Surface treatment : sandblasting to S2.5 + 3 layers of epoxy paint

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA

Contact Now

Electric Engine Room Gantry Crane Ship Deck Equipment

Description:

Engine room crane is electric remote control crane. It is for lifting engine room spare parts and maintenance engine purpose. It is above main engine. It can also be used for lifting other engine room equipment to move in and move out. It helps ship crew to reduce their workload and make their life easier. Our engine room crane is easy for maintenance and low noise.

Main Technical Specifications:

  1. Working Temperature: -40 to 50℃ Etc.
  2. Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
  3. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

Main Technical Parameters:

SWL
(Ton)

Horizontal

Traveling

Speed

(m/min)

Hoisting

Speed
(m/min)

Power

Supply

Hoisting

Height

(m)

Traveling Motor

Hoisting Motor Parameters
0.5 6 8

AC380V, 50HZ 3PH

AC415V 50HZ 3PH

AC440

60HZ 3PH

 5-12 0.2/0.8
1 6 8 5-12 0.4/1.5
2 6 8 5-40 0.4/3
3 6 8 5-40 0.8/4.5
5 6 8 5-40 0.8/7.5
Electric Engine Room Gantry Crane Ship Deck Equipment
Electric Engine Room Gantry Crane Ship Deck Equipment

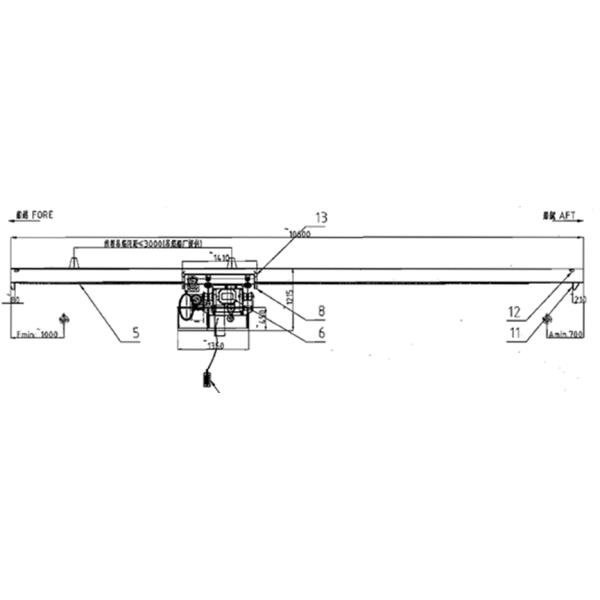

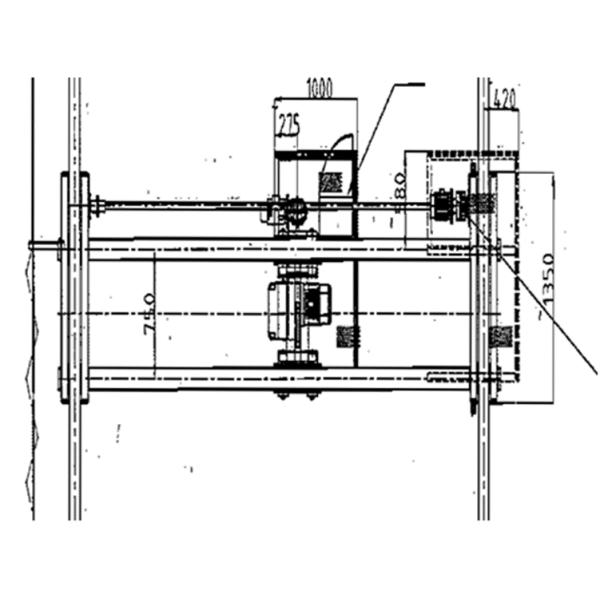

Drawing of Electric Engine Room Gantry Crane Ship Deck Equipment

Electric Engine Room Gantry Crane Ship Deck Equipment
